Introduction: Exploring the Chaos of the Lorenz Attractor
Have you ever wondered how something as simple as a set of equations can create intricate and mesmerizing patterns? The Lorenz Attractor is a perfect example of this phenomenon—a beautiful yet chaotic system that has fascinated scientists, mathematicians, and hobbyists alike for decades.
Originally derived by Edward Lorenz in 1963 while studying atmospheric convection, the Lorenz Attractor is a set of three differential equations that exhibit chaotic behavior under certain conditions. It’s often cited as a classic example of chaos theory, illustrating how small changes in initial conditions can lead to wildly different outcomes—popularly referred to as the “butterfly effect.”
In my project, I’ve brought the Lorenz Attractor to life through a simulation that visualizes its behavior in three-dimensional space. This project not only captures the aesthetic beauty of the attractor but also provides an opportunity to delve into the mathematical and computational principles behind chaos theory.
In this blog post, I’ll walk you through the development of my simulation, explain the math and logic that power it, and share the results, challenges, and insights I gained along the way. Whether you’re a fan of mathematical art, curious about chaos theory, or interested in coding simulations, there’s something here for you!
Overview of the Simulation
The Lorenz Attractor simulation I developed is a visually stunning representation of chaos theory, built using JavaScript and the p5.js library. It provides an elegant way to explore the beauty of the Lorenz system without requiring user interaction. Here’s what the simulation entails:
Core Functionality: The simulation computes and visualizes the Lorenz Attractor’s trajectory in real-time. By solving a set of three differential equations, it generates the classic “butterfly” shape associated with chaotic systems, plotting it dynamically on a 2D canvas.
Dynamic Visualization: The attractor’s path unfolds smoothly over time, revealing its intricate structure as new points are plotted frame by frame.
Aesthetic Design: Leveraging p5.js’s creative capabilities, the simulation incorporates vivid colors and gradient effects to enhance the visual appeal of the attractor. The result is a striking blend of math and art.
Educational Purpose: This simulation is an excellent tool for visualizing the behavior of chaotic systems. It demonstrates key concepts such as sensitivity to initial conditions and the formation of strange attractors, making it a great resource for those interested in chaos theory or dynamical systems.
Development Process
As a Python developer with recent experience in creating simulations using C++, venturing into JavaScript was both a challenge and an exciting learning opportunity. For this project, I decided to step out of my comfort zone and explore JavaScript for the first time, specifically leveraging the p5.js library to bring the Lorenz Attractor to life.
Learning JavaScript: Although JavaScript was new to me, I found it to be a versatile and beginner-friendly language, especially for web-based visualizations. Its syntax and flexibility allowed me to quickly get up to speed and start coding the simulation with ease.
Discovering p5.js: p5.js, a creative coding framework built on JavaScript, turned out to be a fantastic choice for this project. Its simplicity and well-documented API made implementing the Lorenz Attractor a straightforward process. Tasks like drawing on a canvas, animating frames, and adding visual effects felt intuitive and efficient.
Challenges and Adaptations: Transitioning from Python and C++ to JavaScript did come with its set of challenges, particularly in understanding asynchronous behavior and JavaScript-specific quirks. However, these hurdles became valuable learning moments as I adapted to a new language and framework.
Key Takeaways: This project not only deepened my understanding of JavaScript but also introduced me to the world of creative coding. I discovered how seamlessly mathematical concepts could be translated into art using p5.js, and I gained the confidence to explore more web-based projects in the future.
Lorenz Attractor Equations
The Lorenz Attractor simulation visualizes the chaotic behavior of a system of three differential equations in a three-dimensional space. Here’s a step-by-step breakdown of how the simulation is implemented:

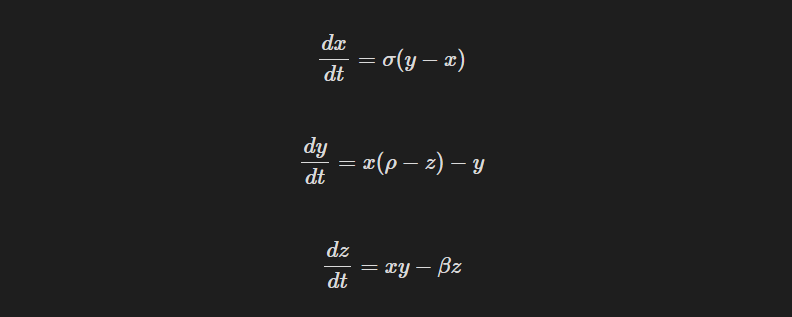

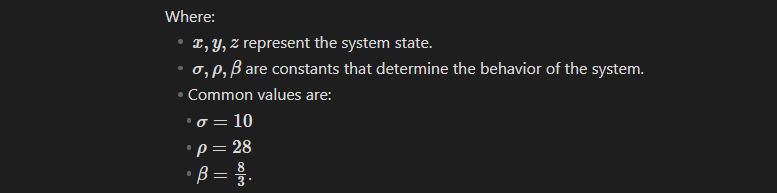

- The Lorenz Equations
Numerical Integration Since these equations cannot be solved analytically, the simulation uses numerical methods to approximate the solution.
The Euler method is applied to calculate the new state of the system at each time step: $$ \Huge x_{t+1}=x_t+Δt⋅ \frac{dx}{dt} $$ Similar updates are applied for $\large y_t$ and $\large z_t$ .
A small time step $\large \Delta t$ ensures smooth and accurate trajectories.
Visual Effects
To enhance the visual appeal of the Lorenz attractor simulation, the following visual effects were implemented:
Color Gradients: The points are plotted with colors that change over time, often based on their position or frame count. This dynamic color gradient enhances the visual complexity of the attractor as it evolves.
Trails: The attractor’s path is drawn as a continuous trail by connecting successive points, which accentuates the chaotic nature of the pattern and helps to illustrate the long-term behavior of the system.
Smoothing and Glow Effect: Older points fade out gradually, giving the effect of a “living” attractor. Additionally, a glow effect was added using Gaussian blur, implemented in Python. This blur effect softens the edges of the attractor’s path, creating a smooth, ethereal glow that enhances the aesthetic appeal.

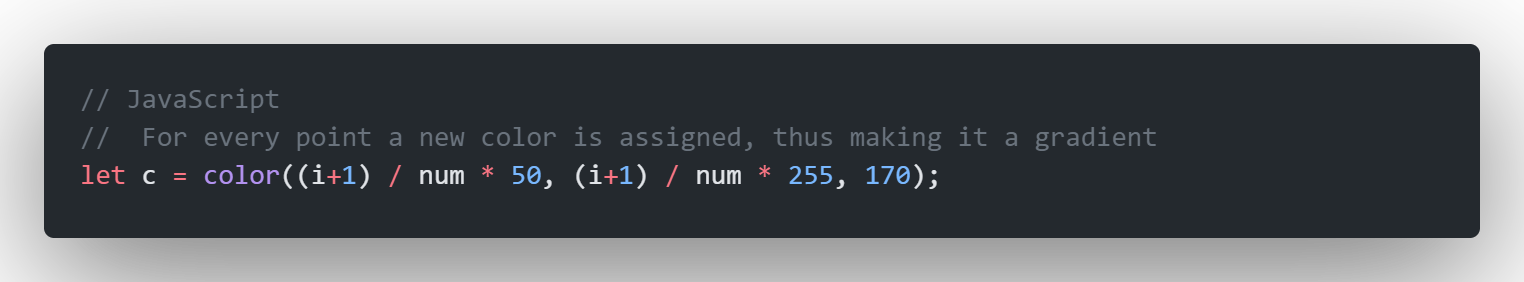

In simulation each point is given a new color and we get gradient.!

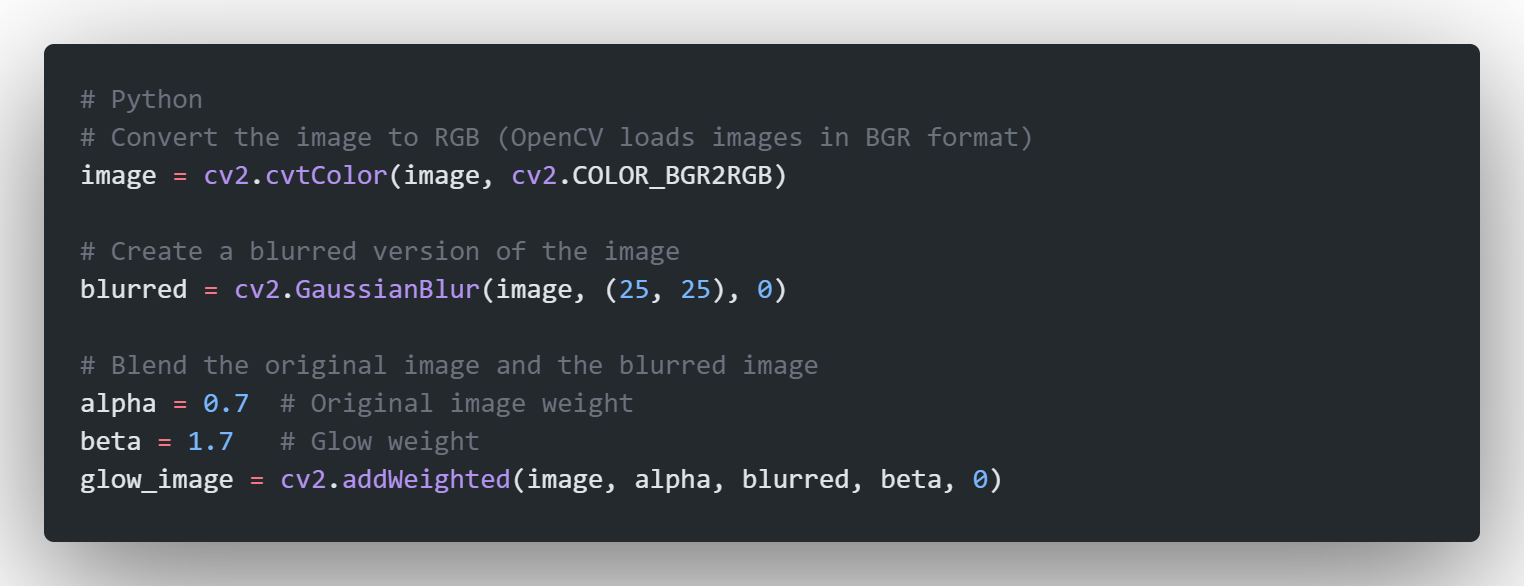

Use of python - OpenCV to Gaussian Blur to the frames of the simulation!
The Code

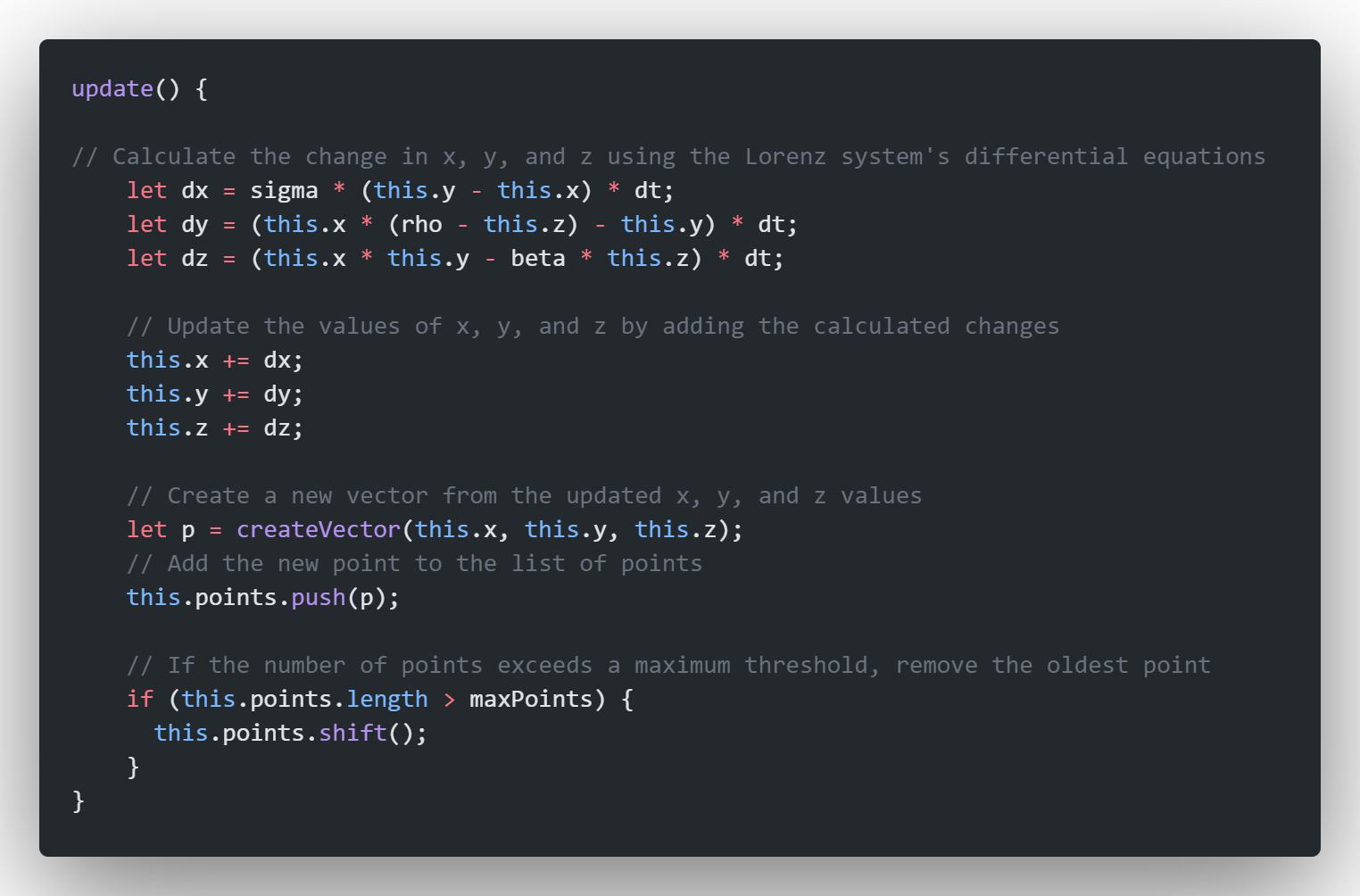

This update() function is responsible for calculating the next state of the Lorenz system, updating the attractor’s coordinates, and managing the visual trail by storing the points that represent the attractor’s path. The use of differential equations and the point-keeping logic creates the evolving, chaotic trajectory that characterizes the Lorenz attractor.!
The function update() is part of a class that simulates the Lorenz attractor, and each time it is called, the position of the points is updated, moving the attractor to a new point. Since the Lorenz system is chaotic, even slight variations in the initial conditions (such as small changes in the values of x, y, or z) cause the system to behave drastically differently over time. This sensitivity to initial conditions leads to the simulation “messing up” or diverging, as even tiny changes in the starting point result in completely different trajectories. This is a common feature of chaotic systems like the Lorenz attractor, where small differences in input can lead to significant differences in the outcome.
Final Output
Conclusion
LinkedIn Instagram In conclusion, this project has been an exciting and rewarding experience as it marked my first time using JavaScript for simulation development. While I have been working with Python and C++ for a while, exploring JavaScript alongside the p5.js framework was a refreshing challenge. It allowed me to learn a new programming language and understand its unique features, particularly in the context of creative coding and visualizations. I thoroughly enjoyed the process and found it to be a great way to combine both mathematics and programming to create something visually captivating. This project has sparked my interest in JavaScript, and I plan to continue experimenting with it in future projects. By diving deeper into JavaScript, I aim to enhance my skills and push the boundaries of what I can create, particularly in interactive simulations and visual effects. I look forward to exploring more possibilities and applying what I’ve learned to even more complex and creative endeavors.
